windows and sunroof switch failure?

  • Vince
  • Vince's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
More
26 Mar 2021 18:09 #21836 by Vince
I've got an 86.5 928S Auto, and just yesterday I went for a test drive on the suspension work I'd done and found that both windows won't go down and the sunroof won't open. No sound of struggling motors or anything like that, just nothing. The rear wiper works. The odd thing is that everything was working a month or so ago.
Anyone out there have an idea why these three items would all stop working at the same time?

Please Log in or Create an account to join the conversation.

More
28 Mar 2021 00:03 #21838 by Rich928
Replied by Rich928 on topic windows and sunroof switch failure?
Hello Vince,
If you don't have the factory workshop manuals, I suggest you download them. They're available in PDF format at no cost from this link:

www.ligeti.com/928/

The wiring diagrams are included. Looking to your 1986 model, there are fuses for the windows and sun roof (fuses 14 & 15). Check them, be sure there is no corrosion.



There is a relay for the window lifts (VI):

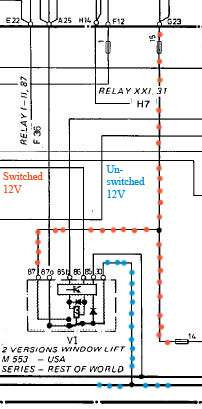

and looking at the wiring schematic with the relay



You can see that the relay VI supplies power to both the windows and sun roof. My guess is the problem is with the connection at the base of the relay VI or the relay has failed.

In the diagram I highlighted the 30 circuit which is always at 12V, and the 87 circuit which is switched.

Rich
Membership Chairman
Charter Member
1993 928 GTS Cover Girl
1987 928 S4
1979 928 5-speed rescue
1979 928 5-liter track beast

This message has attachments images.
Please log in or register to see it.

The following user(s) said Thank You: Vince
